Heaters: Wall Mount Non Recessed
VentDepot

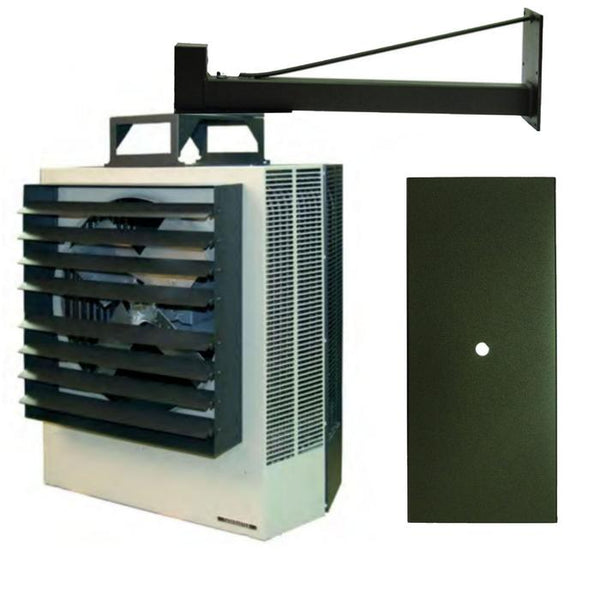

United States/Heaters: Wall Mount Non Recessed/5100 Series Suspended Fan Forced Heater with Bracket A5175 and Dust Shield
Spec Sheet (.pdf) Spec Sheet (.pdf)
General Characteristics 5100 Series 60 KW - 100 KW Suspended Fan Forced Unit Heater
24-Volt Control, Factory pre-programmed - just set your setback temperature in the field, Setback feature allows up to 12 degree setback with easy-to-use adjustable slide switch.
Occupancy sensor defaults to economy mode after one hour, sensor has 94 degree angular range and a 16’ linear range.
Temperature range of 50-90 degrees. Up to two stage operation on 5103-5150 Series and up to four stages on 5160-51100 Series.
65-second delay between stages.
Add “SD” as suffix to heater model number for factory built in option.
Heavy gauge steel cabinet with powder coated finish and control compartment housing a master terminal board. The control compartment allows for access through a hinged and latched door, simplifying wiring, installation, and maintenance. Made in U.S.A.
The heating element is a copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air Flow.
All units come equipped with manual reset type limit controls to de-energize the heater should an over-temperature situation occur.
Single speed, single phase permanently lubricated, thermally protected motors with ball bearings. The fan override purges the unit of residual heat at shutdown.
Summer fan switch to operate the fan only, and a heat stratification thermostat for high bay areas.
60 KW and 70 KW are three stage; 80 KW, 90 KW, & 100 KW are four stage.
The optional factory installed step controller is a first on last off sequencer that will cycle the unit heater stages through an optional wall thermostat. Additionally, the step controller can be controlled by any building management system with 4 to 20 MA or 0 - 10 VDC field supplied control signal.
Includes Bracket.and Dust Shield
Product Applications 5100 Series 60 KW - 100 KW Suspended Fan Forced Unit Heater
Recommended for all industrial, commercial, and residential. For indoor and outdoor use.
Warranties 5100 Series 60 KW - 100 KW Suspended Fan Forced Unit Heater
Manufacturer's Limited Warranty: 1 Year.
Keywords and Search Terms
5100 Series Mounted Fan Heater, Horizontal or Vertical Fan heater, Mounted Fan Forced with Bracket, Forced Unit Heater with Fan Guard, 5100 Series Heater with Bracket, Forced Unit Heater, 5100 Series, Mounted Heater 5100 Series, Suspended Fan Forced Unit Heater, Horizontal Mounted Heater, Vertical Mounted Heater with Bracke, Series Horizontal or Vertical Mount, 5100 Series Fan Forced Unit Heater, Fan Forced Unit Heater with Fan Gua, Horizontal or Vertical Mounted Heat, Mounted Fan Forced Unit Heater, Vertical Mounted Fan with Bracket, Horizontal Mounted Fan with Bracket, 5100 Series Fan Forced with Bracket, Mounted Fan with Bracket Fan Guard, 5100 Series Mounted Fan, Fan Heater with Bracket and Fan Gua, Mounted Fan Unit Heater, Mounted Fan Forced Unit, Mounted Forced Unit Heater, Mounted Fan Heater with Fan Guard, 5100 Series Vertical Mounted Heater, 5100 Series Horizontal Mounted Heat, Horizontal or Vertical Mounted Fan, Mounted Fan Heater with Bracket
