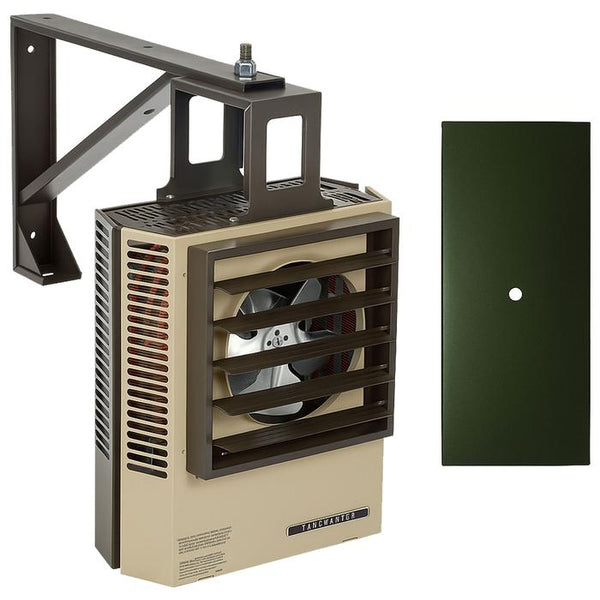

General Characteristics 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Brack
Heavy 18 gauge welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance. Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow. All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur. Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models. Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models. Fan over-ride purges unit of residual heat at shutdown. Louvers are individually adjustable for directional control of air flow up to 15° from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications. Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40°F to 110°F. Units with model numbers ending in CA1 are factory wired for low voltage controls. 25 KW through 50 KW units are designed for two stage heating operation. Unit Heaters can be mounted for horizontal or vertical discharge. Applications up to 6000 ft. See UH Series above 6000 ft. Made in U.S.A.
Product Applications 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Bracket
Recommended for all industrial, commercial, and residential. For indoor and outdoor use.
General Characteristics 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Brack
Heavy 18 gauge welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance. Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow. All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur. Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models. Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models. Fan over-ride purges unit of residual heat at shutdown. Louvers are individually adjustable for directional control of air flow up to 15° from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications. Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40°F to 110°F. Units with model numbers ending in CA1 are factory wired for low voltage controls. 25 KW through 50 KW units are designed for two stage heating operation. Unit Heaters can be mounted for horizontal or vertical discharge. Applications up to 6000 ft. See UH Series above 6000 ft. Made in U.S.A.
Product Applications 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Bracket
Recommended for all industrial, commercial, and residential. For indoor and outdoor use.
Warranties 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Bracket With Brack
Manufacturer's Limited Warranty: 1 Year.
Warranties 5100 Series Horizontal or Vertical Mounted Fan Forced Unit Heater With Bracket With Brack
Manufacturer's Limited Warranty: 1 Year.
