United States/Heaters: Downflow Forced Fans/3480 Series Commercial Fan Forced Recessed Mounted Ceiling Heater with Disconnect Switch |
|
Spec Sheet (.pdf) |
General Characteristics of 2600 Series Down Flow Unit Heater |
The 2600 Series is a down flow unit heater; constructed with 16 gauge steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door.
OSHA guards standard with all models.
For industrial and commercial use.
For indoor use where heat needs to be forced down from ceiling.
The heating element is corrosion resistant with steel sheath and steel spiral fins.
Overheat protection: All units come equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.
The motor is totally enclosed, 1 speed, 1 phase permanently lubricated, thermally protected motors with unit bearings on 3KW to 20KW models.
Totally enclosed, 2 speed, 1 phase permanently lubricated, thermally protected motors with sleeve bearings on 24KW to 50KW models.
Axial flow fan blade - 1570 RPM max.
All Models equipped with Fan Purge which allows Fan to operate after elements are de-energized to purge residual heat.
Temperature controls: 208V, 240V, 277V, and 480V units have built in 24 volt transformer for low voltage remote thermostat application.
600V units have in-built 240V control on 5-20 Kw models; 25-50Kw models have 24V control.
25Kw models may operate as 2 stage heaters if 2 stage remote thermostats are used.
Disconnect switch: all models equipped with in-built disconnect except F3F2640, F3F2650 and H3H2650.
Installation: unit can be mounted using optional mounting bracket or field constructed angle iron bracket
Not recommended for mounting with threaded rod or chain

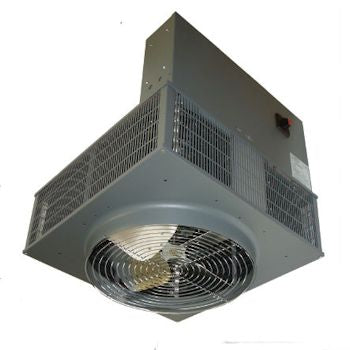

The 2600 series shown with standard wire guard.
Diffusers are field installed
Minimum mounting height is 6 feet.
This product is ETL-CETL listed.
Made in the U.S.A.
|
Product Applications of 2600 Series Down Flow Unit Heater |
Industrial and Commercial use where heat needs to be forced down from ceiling. Used to heat factories, shops, bakeries, gymnasiums, warehouses, offices, etc.
For indoor use.
|
Warranties and Guaranties of 2600 Series Down Flow Unit Heater |
Manufacturer's Limited Warranty: 1 year. |
